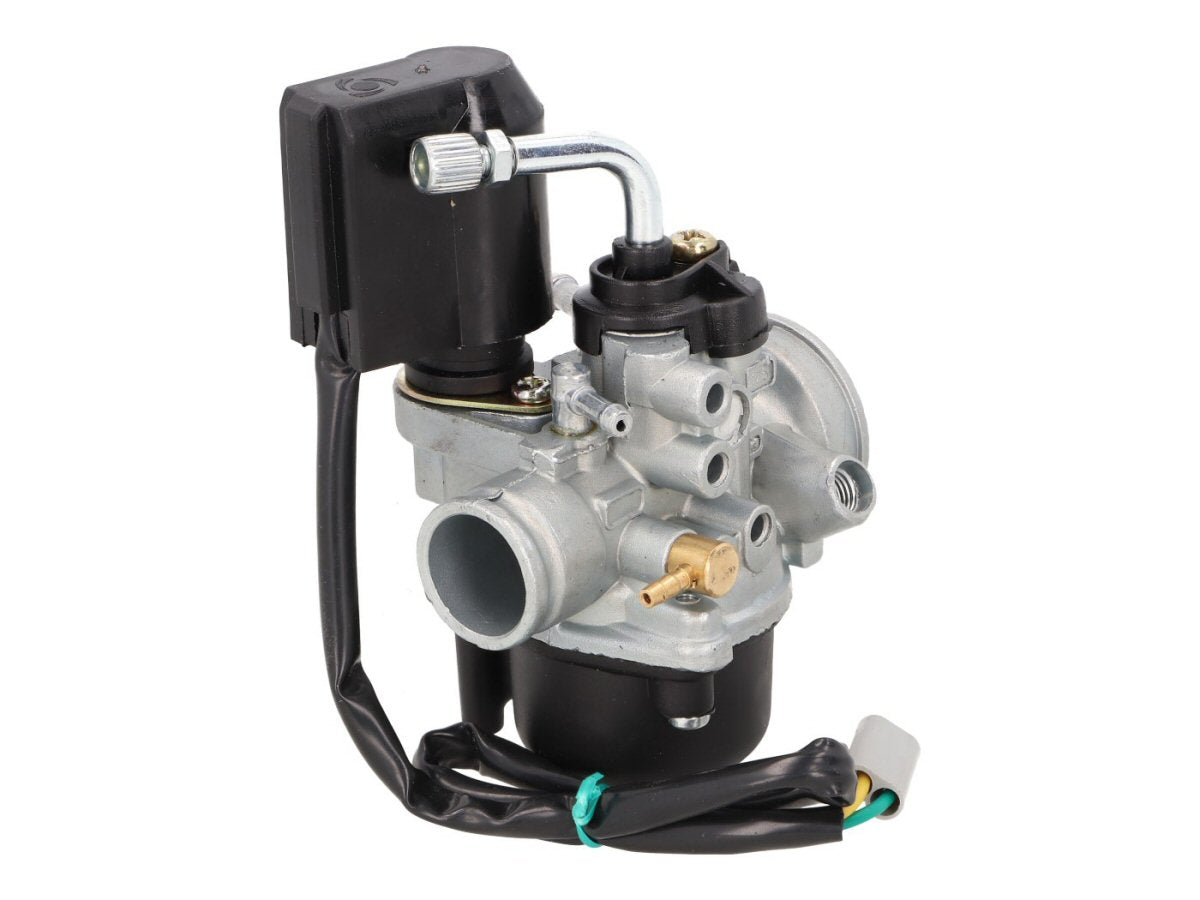

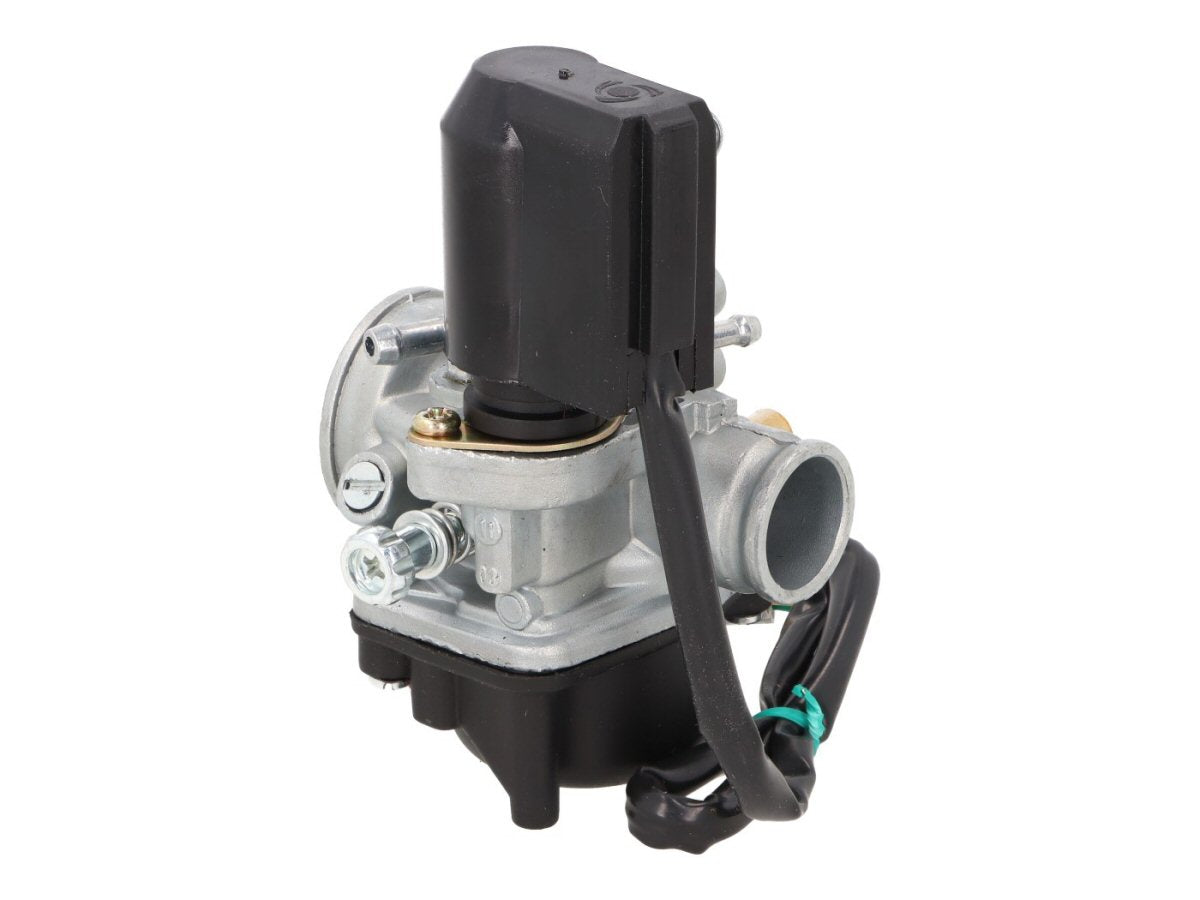

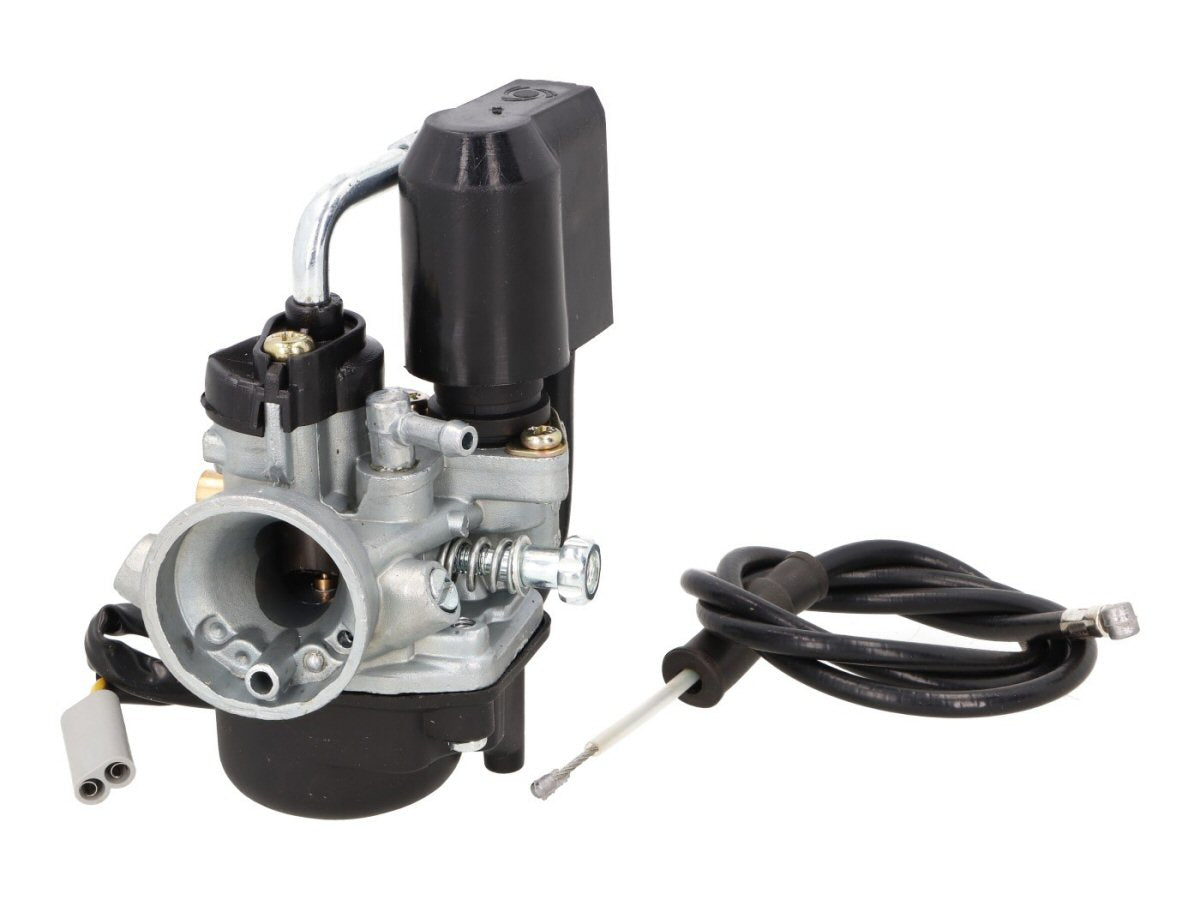

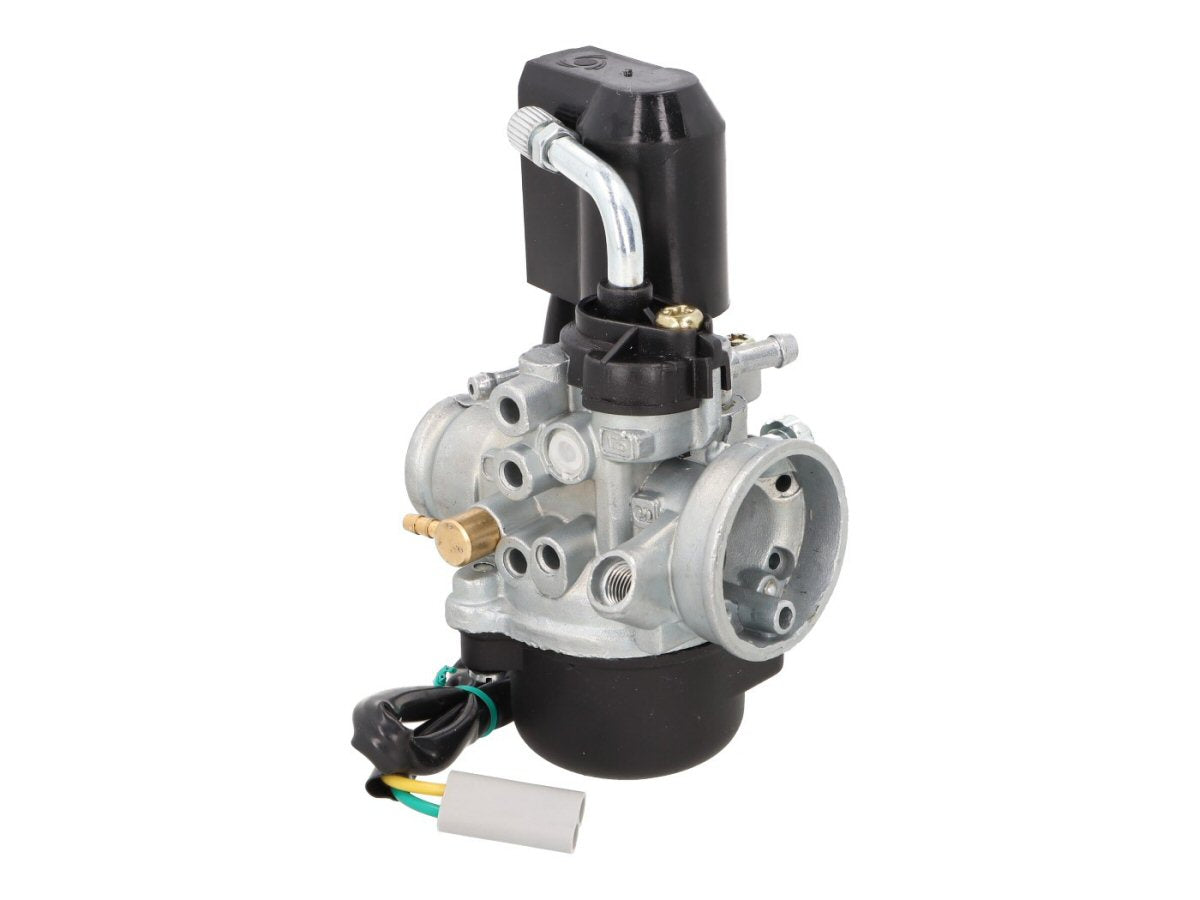

Naraku Carburetor - 17.5mm for Minarelli Style Engines

Naraku 17.5mm carburetor for 1PE40QMB Minarelli style engines and Piaggio 2-stroke engines.

The 17.5mm inner diameter is suitable for use with 50-70cc cylinders. The carb has an electric choke and an oil line fitting. Please see Specifications for more information.

Fits the following models (and more) with 1PE40QMB Minarelli Style Engines:

• Keeway: F-Act 50, Matrix 50, Venus 50
• MZ (MuZ): Moskito 50
• Vento: Zip 50, Triton 50
• Benelli: 49X QuattronoveX 50
• CPI: Oliver 50, Popcorn 50
• Eton: Beamer II
• Yamati: RX8 50

Fits the following models (and more) with Piaggio 2-stroke engines:

• Aprilia: SR50, Scarabeo 50, Sport City One 50, Mojito 50
• Derbi Atlantis 50, GP1 50
• Piaggio: Fly 50, Typhoon 50
• Vespa: ET2 50, LX/V 50, Primavera 50, S 50




Please see our Warranty & Returns Policy.

• Main Jet: 75 (M6 Dellorto style)
• Idle Jet: 34
• Air Filter Connection: 35mm
• Intake Connection: 23.7mm
• Sleeve Length of Included Cable: 25 inches
• Overall Length of Included Cable: 29 inches
