Dr. Pulley Honda Navi 110 Variator

Dr. Pulley Over Range Variator VK181406 for Honda Navi 110. Also fits Dio (Japan only), Click, Vision, Activa, and Lead 110 models.

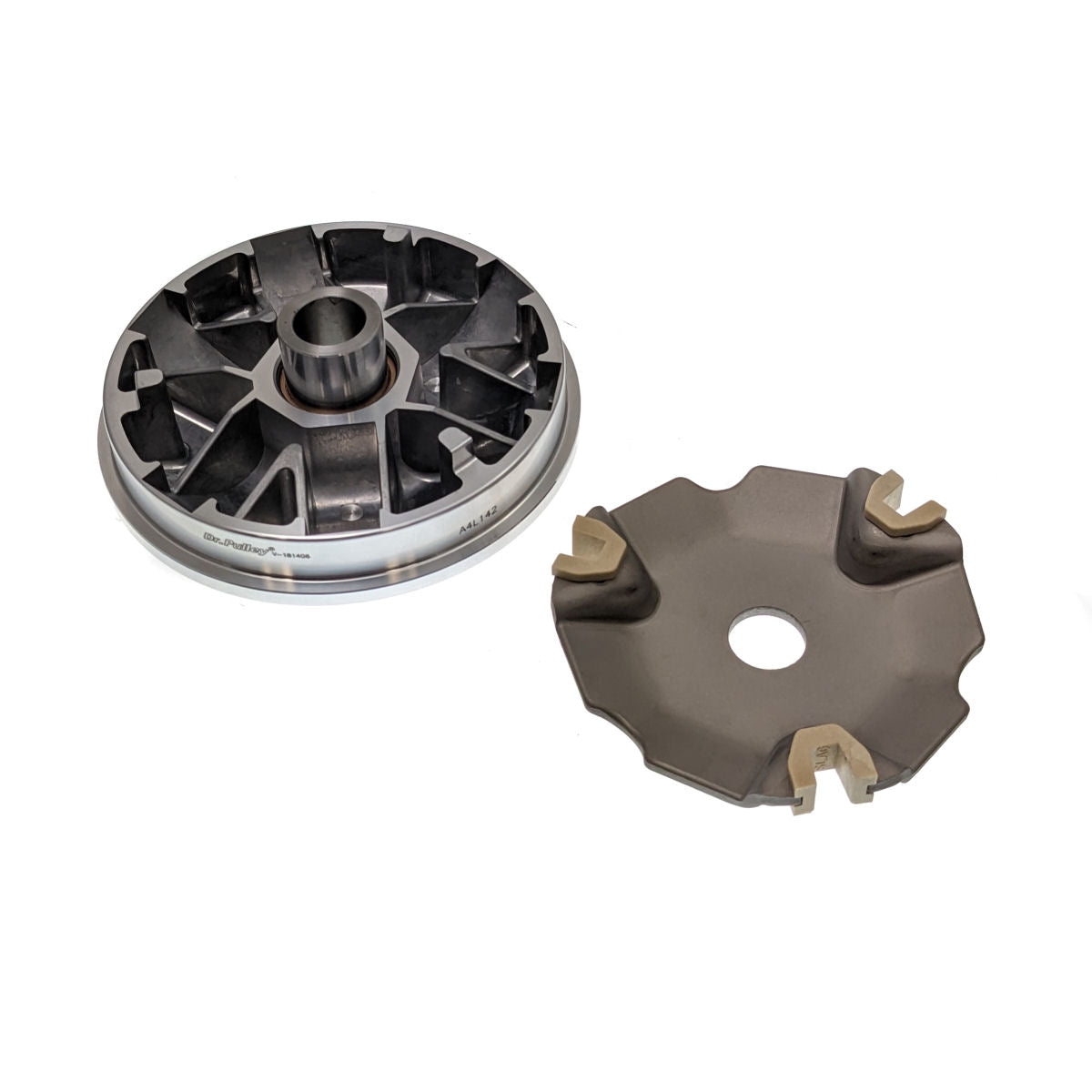

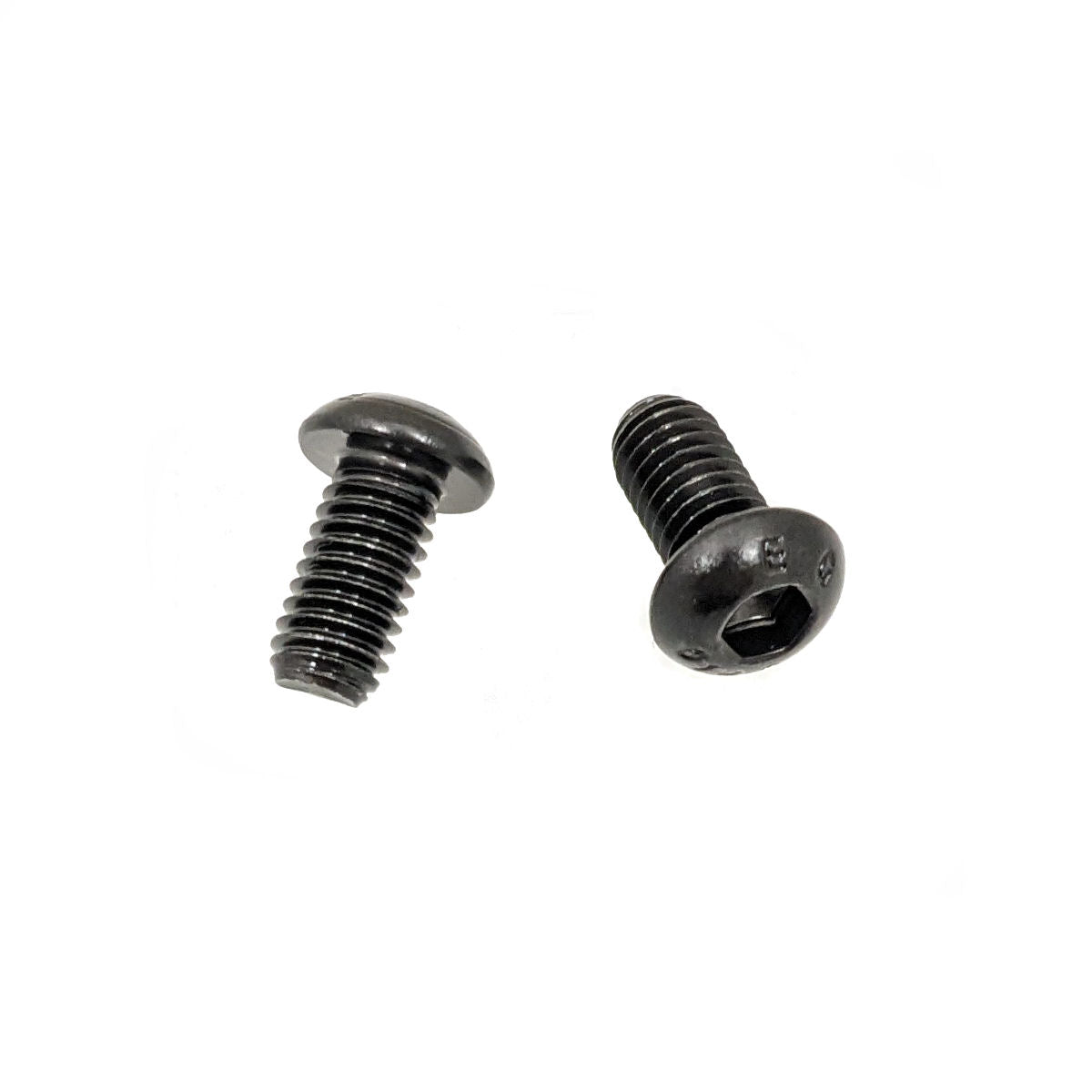

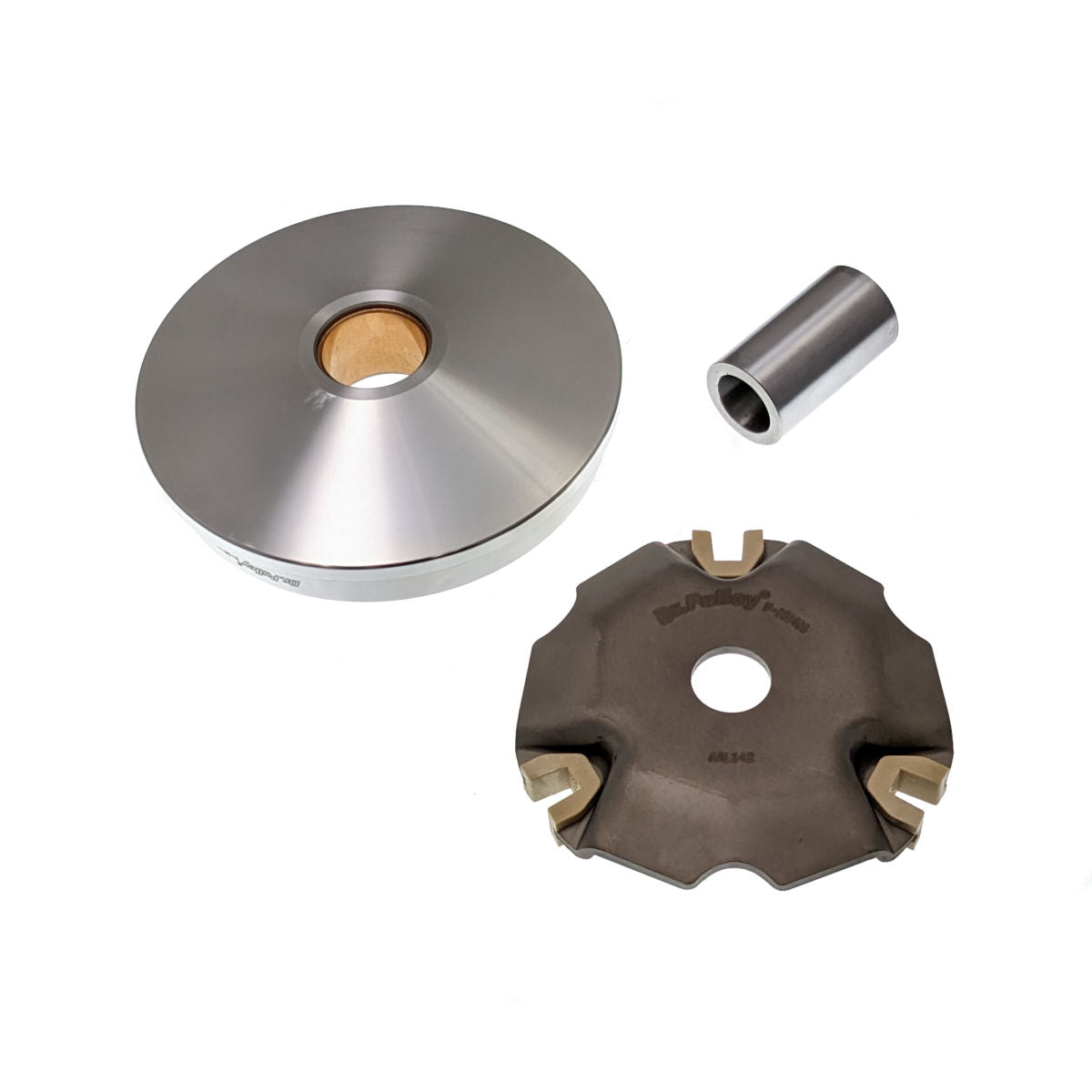

Kit includes variator, ramp Plate, slides, variator boss, and two M6 button head screws. The screws must be installed in place of the stock hex head bolts behind the variator. This is necessary for clearance on the case of the Navi.




• Specially Designed Ramp Shape
• Extended Ramp Length for Higher Top Speed
• Bearing Grade Slide Pieces
• Uses 18x14 Weights

• Uses 18x14 Weights (Not Included)
• Includes Slide Pieces

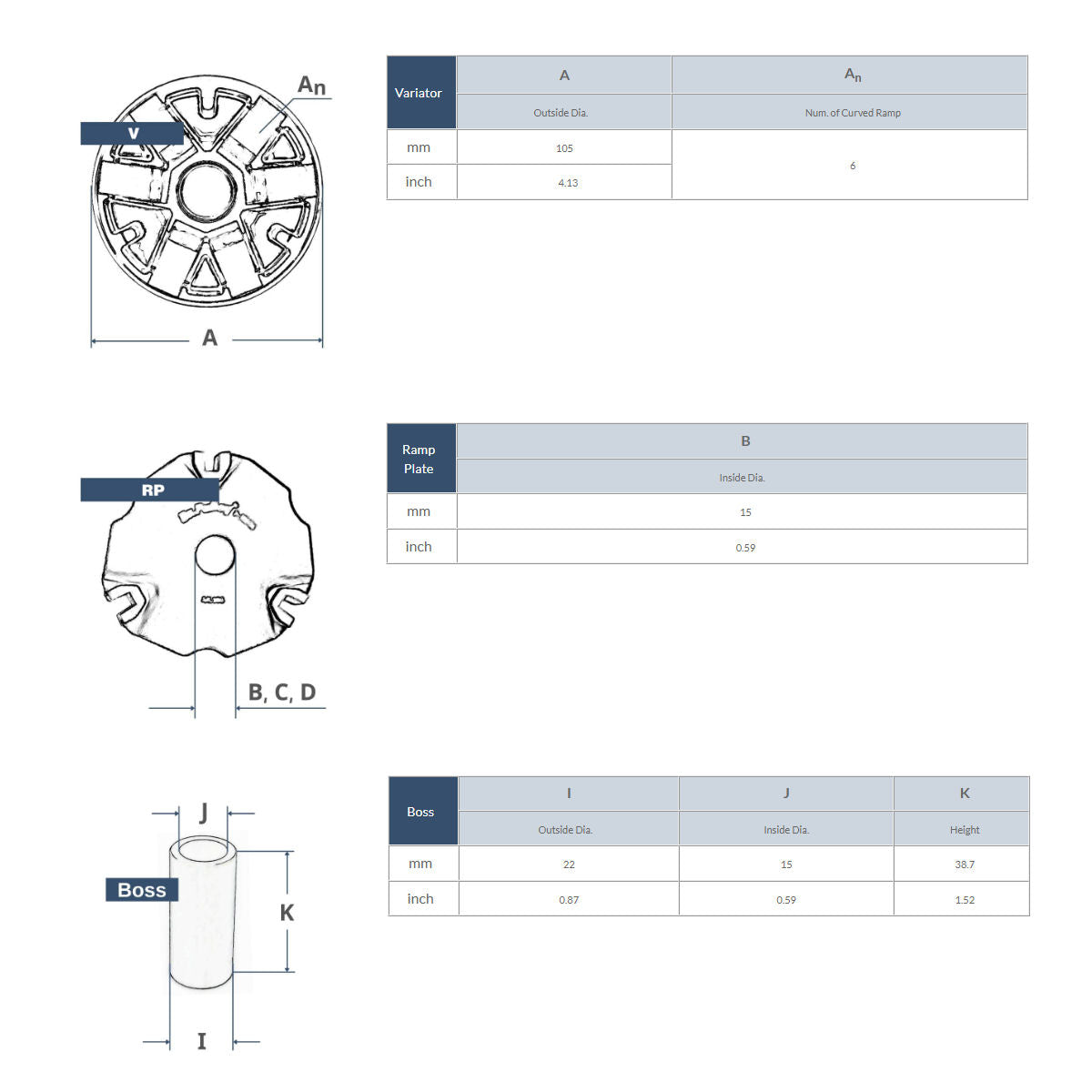

• Drive Face Outer Diameter: 105mm
• Boss Inner Diameter: 15mm
• Boss Outer Diameter: 22mm
